Printing with APEX: PL/PDF

Introduction:

PL/PDF is a PL/SQL package collection that you can use to create PDF files. Easy to integrate with Oracle APEX, it can be called from a Page or Application Process in Oracle Apex. No additional hardware is required, PL/PDF installs into the same database as APEX i.e. Oracle.

PL/PDF Features:

  1. Robust reporting engine
  2. Charts
  3. Bar, Line & Pie
  4. Barcode Printing
  5. Use Existing PDF files as Templates
  6. TrueType Font Embedding
  7. Encrypted PDF Documents
  8. Native Support for PNG & JPEG images

Basic Methods:

  • Init() – Called once to initialize PL/PDF
    • Parameters – p_orientation, p_unit, p_format
  • newPage() – Creates a new page
    • Parameters – p_orientation

Initialising PL/PDF:

Get the Template

SELECT blob_content INTO l_template_pdf
FROM wwv_flow_files
WHERE filename = 'MyTemplate.pdf' ;
l_template := plpdf_parser.getTemplate(l_template_pdf,1);
— Initialize PL/PDF
plpdf.init(p_format => ‘letter’);
l_template_id := plpdf.InsTemplate(l_template);
CREATE a NEW page plpdf.NewPage;

Place the TEMPLATE ON the page plpdf.useTemplate(l_template_id);

  • setCurrentXY() – Sets the position of the cursor
    • Parameters – p_x, p_y, Similar: setCurrentX, setCurrentY
  • setPrintFont() – Sets the font family and style used for text
    • Parameters – p_family, p_style, p_size

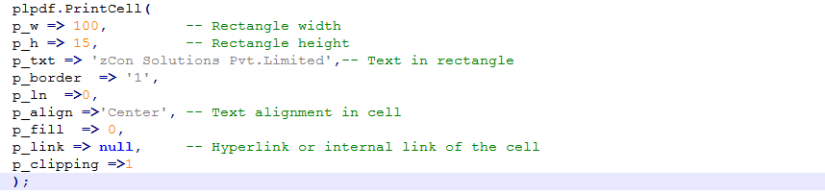

  • PrintCell() : Print line of text on page.
    • Parameters – P_w, P_h, P_txt, P_border, p_in, P_align, P_fill, P_link,  P_Clipping

Sample Example Output:

In our example we have implemented “Barcode Printing” with PL/PDF using Code39 Procedure from PLPDF_BARCODE package.We are Printing Barcode for the Text “E150305” which is representing Employee’s Identity Number.There are other variants available with same like e.g (EAN13,UPC_A,B2OF5,QRCODE) Barcodes.

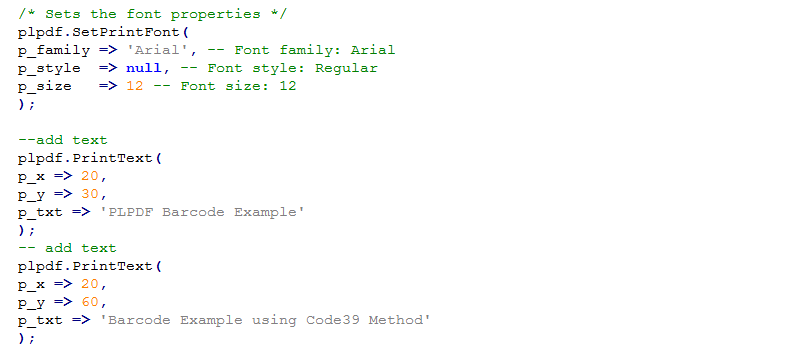

Sample Code Highlights :




Other Usages

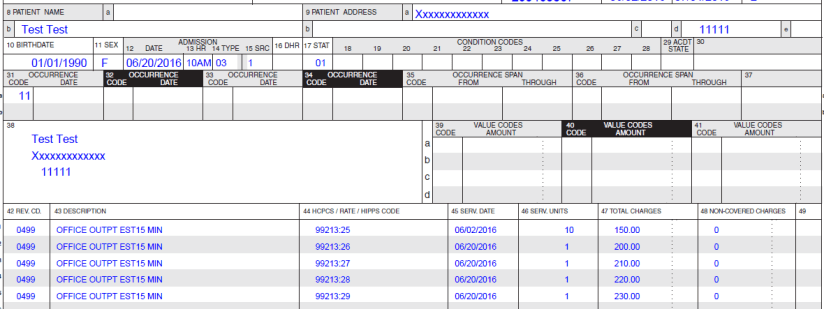

Template feature in PLPDF allows you to use any tool to create the structure of a document and use PL/PDF APIs only to populate the data,This way you can focus on filling in the data instead of actually creating structure of document through PL/PDF which is time consuming approach.So using Template feature one can Automate form filling using dynamic data from the Database.Below are few examples of this approach,



Essentially, PL/PDF is a series of calls to PL/PDF procedures and functions from a PL/SQL script, package, procedure or function. If you are not familiar with the PL/SQL programming language, study the Oracle documentation.

Please choose appropriate version of PLPDF as per Oracle Database version.You can download trial version of PLPDF from http://plpdf.com/downloads-v2.php.

Download sample code from zCon Solutions Github Repo


Written by Dhananjay Nandgaonkar ,Sr. Software Engg. at zCon Solutions
